Buttweld Fittings are durable piping components used to connect, redirect, and modify piping systems through welded joints. They provide strong, leak-resistant connections and are widely used in oil & gas, chemical, petrochemical, power, and industrial applications.
| Pipe Fittings Specifications: | ASTM A403 / ASME SA403 |
|---|---|
| Pipe Fittings Size: |
Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Pipe Fittings Dimensions: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS10 |
| Buttweld Fittings Thickness: | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS available with NACE MR 01-75 |
| Buttweld Pipe Fittings Type: | DN15-DN1200 |
| ASTM A403 SS Buttweld Fitting Connection: | Welding |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP Pipe Fitting |
| Size Range: | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP Buttweld Fitting |
| ASTM A403 SS Buttweld Fittings Manufacturing Process: | Push, Press, Forge, Cast, etc. |
| Buttweld Pipe Fittings Test Certificates: |
EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc. |
| SA 403 Pipe Fittings Origin & Mills: | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized Manufacturer Of: | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Material Test Certificates: |
MTC as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103 and NACE MR0175 |
| ASME B16.9 ASTM A403 Pipe Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Returns, 3D Elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
|---|---|---|
| ASME B16.28 | - | Short Radius Elbows, Short Radius 180-deg Returns |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub Ends, Caps, Long Radius 180 Degree Returns, Concentric Reducers, Eccentric Reducers |
| MSS SP75 | - | Long Radius Elbows, 3R Elbows, Straight Tees, Reducing Outlet Tees, Caps, Reducers |
| Stainless Steel | ASTM A182 & A240 - TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L |
|---|---|
| Titanium | ASTM B381 Gr 1, 2, 3, 5 (6AL - 4V), 7, 9, 11, 12, 23 (6AL - 4V ELI) |
| High Nickel Alloys | ASTM B564 / B335 / B649 / B462 / B151 - Hastelloy, Nickel, Monel, Inconel, Incoloy, Alloy 20 & Cupro Nickel |
| Duplex | ASTM A182 / UNS S31803 & S32205 (2205) |
| Super Duplex | ASTM A182 / UNS S32750 (2507) & S32760 |

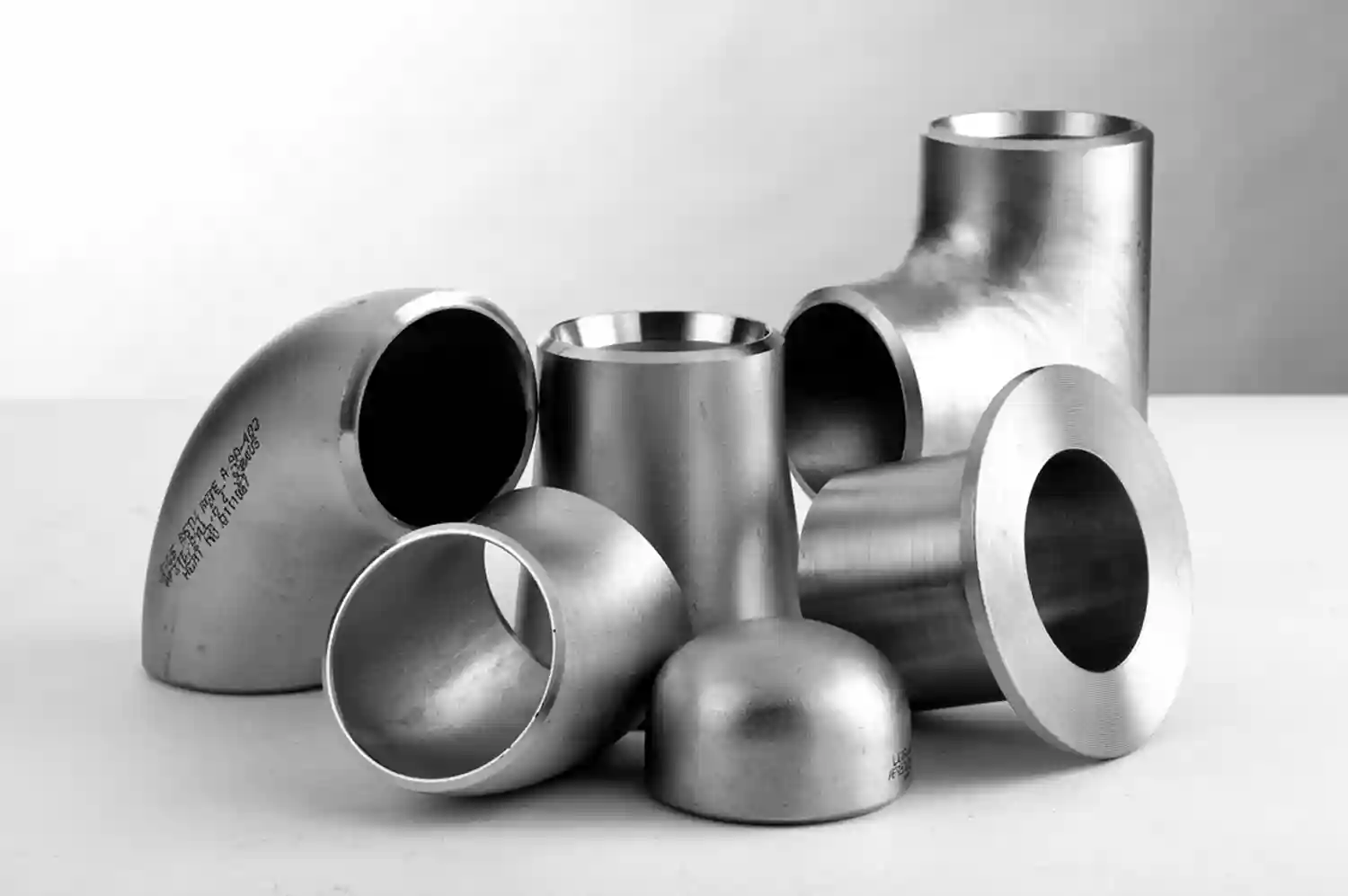

Stainless Steel Buttweld Fittings provide strong, corrosion-resistant connections for demanding piping systems. They are widely used in oil & gas, chemical, petrochemical, pharmaceutical, food processing, and industrial applications.

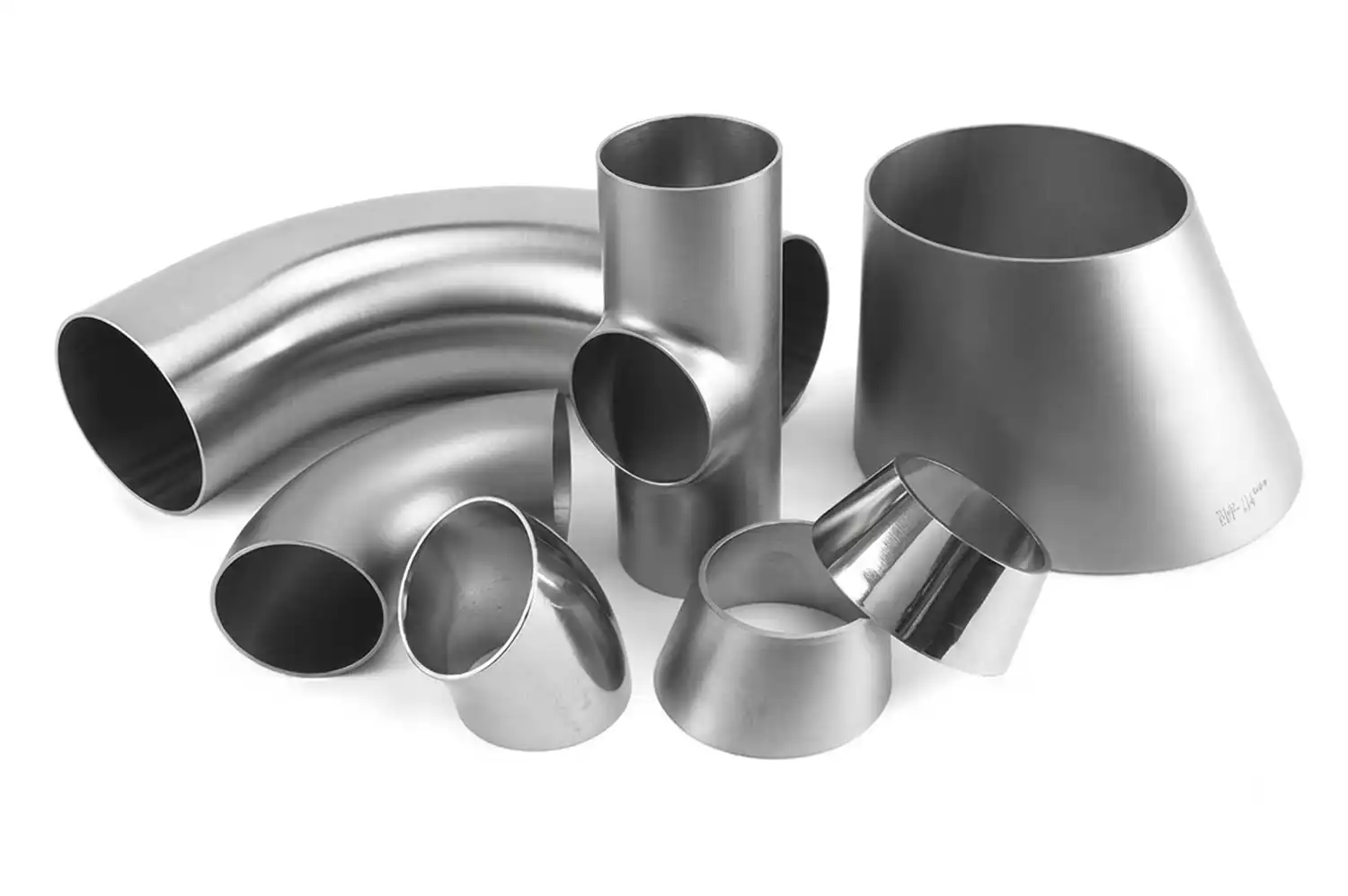

Nickel Alloy Buttweld Fittings offer excellent strength, corrosion resistance, and durability in demanding environments.

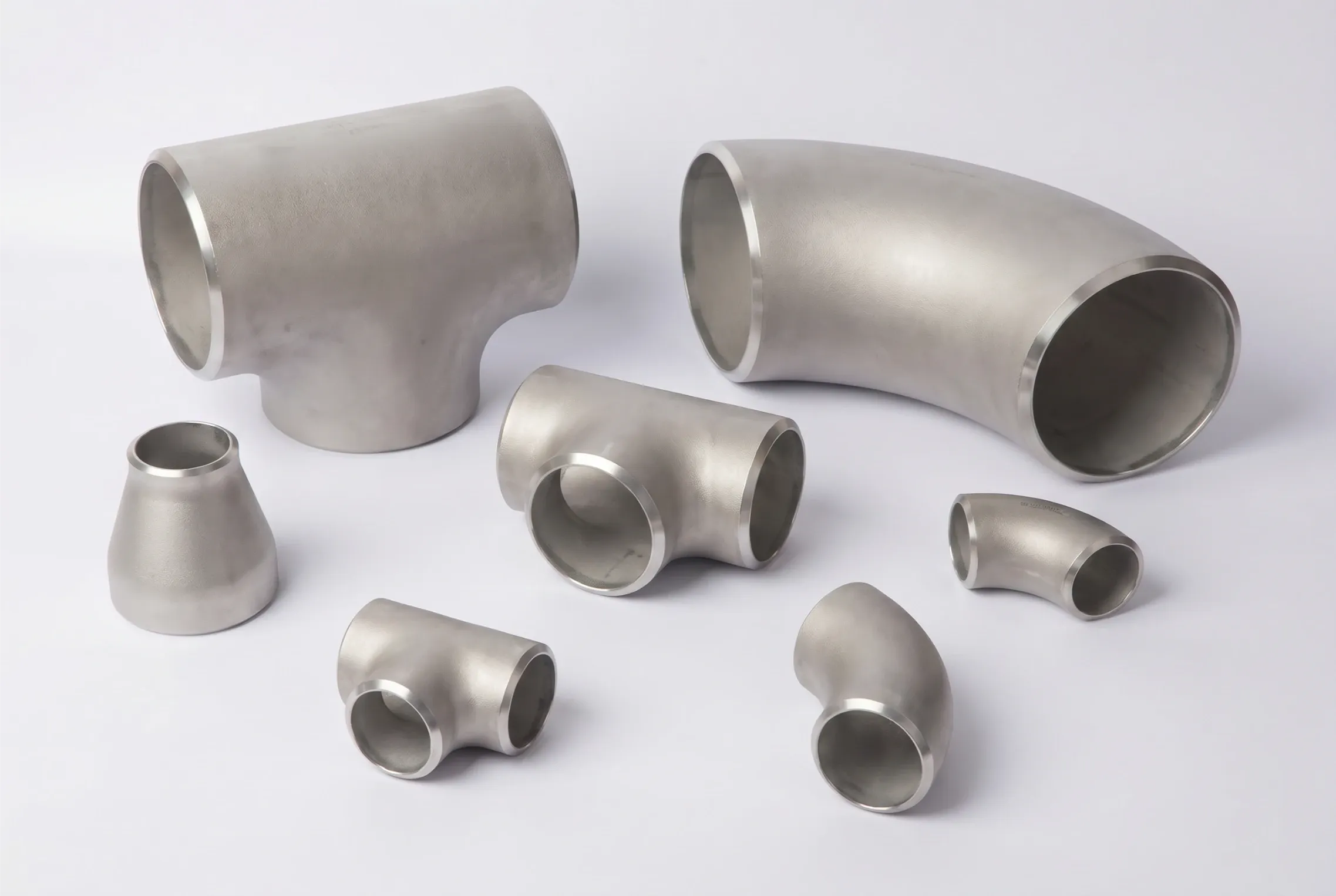

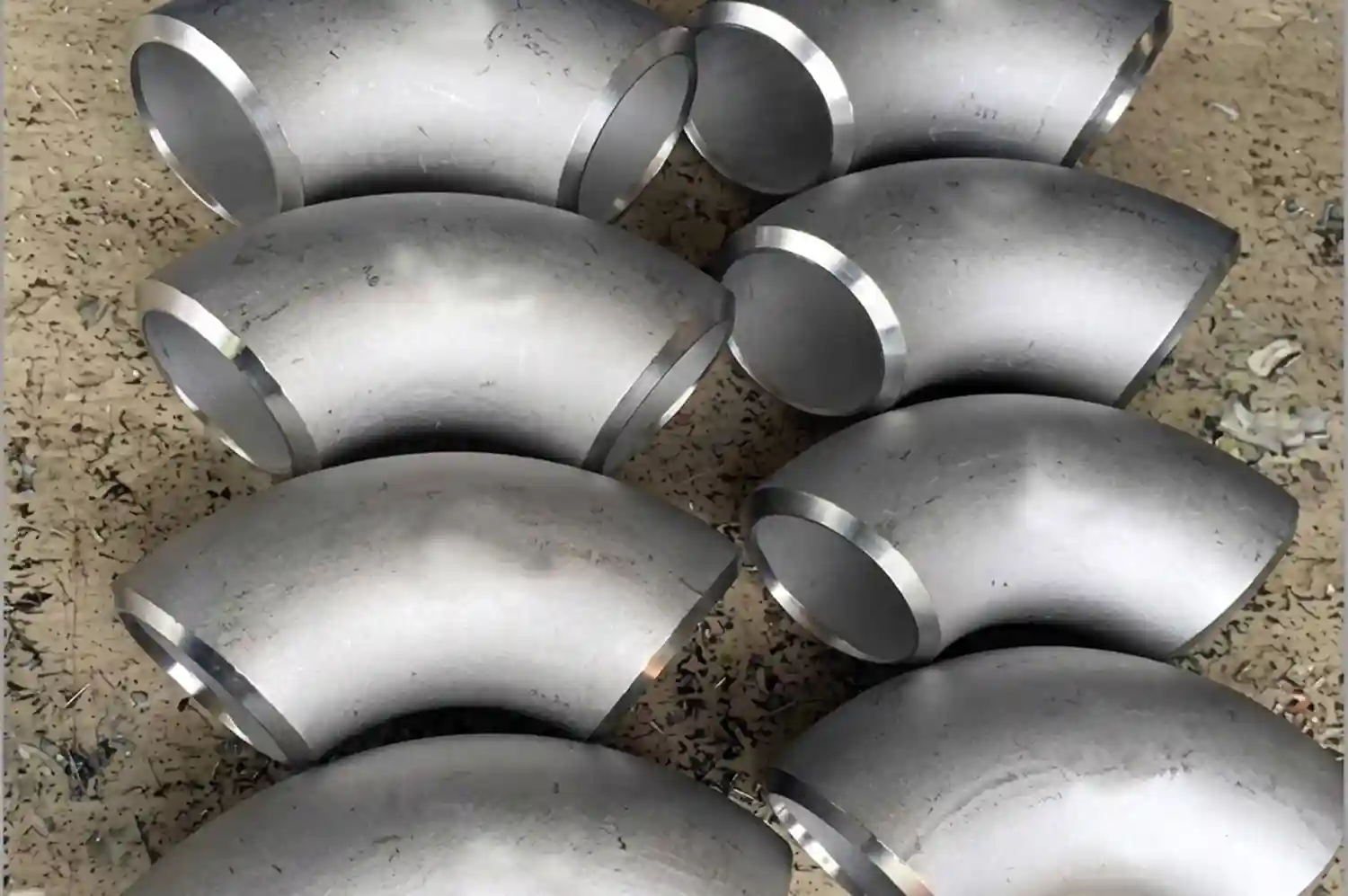

Duplex and Super Duplex Buttweld Fittings offer excellent strength, corrosion resistance, and durability in demanding piping environments.

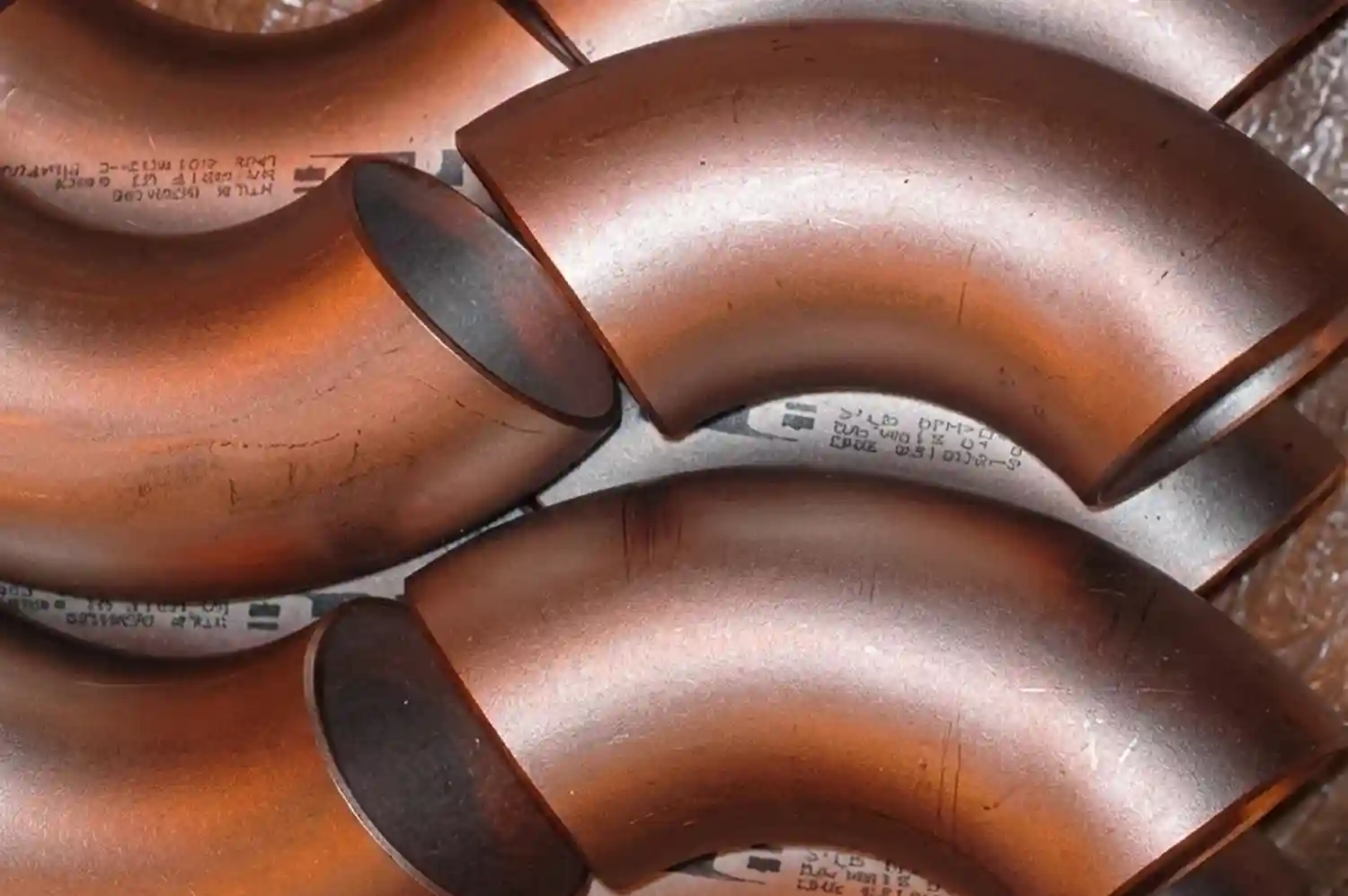

Copper Nickel Buttweld Fittings offer excellent corrosion resistance, strength, and durability, especially in marine and seawater environments.
